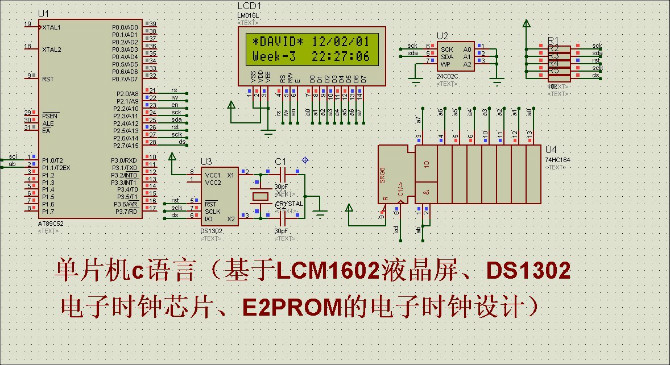

歷時一個下午的功夫！很多地方可以用循環優化的，但基于簡潔，可讀性好！故使用傳統方法！

By DAVID     QQ:1205946980

程序代碼下載：http://m.izizhuan.cn/f/1302eep.rar


#include<reg52.h>
#define uchar unsigned char
#define uint unsigned int

uchar code tab1[]="*DAVID*";
uchar code tab2[]="Week-";
uchar code tab3[]="0123456789";

uchar wwe[13];
uchar xdw[7]={0x00,0x27,0x22,0x01,0x02,0x03,0x12};

sbit LCD_RS=P2^0;
sbit LCD_RW=P2^1;
sbit LCD_EN=P2^2;
sbit E2R_SCK=P2^3;
sbit E2R_SDA=P2^4;
sbit DS1302_RST=P2^5;
sbit DS1302_SCK=P2^6;
sbit DS1302_DS=P2^7;
sbit HC164_SCK=P1^0;
sbit HC164_AB=P1^1;

void start_24c02_hs();
void stop_24c02_hs();
void yingda_24c02_hs();
void E2R_inti();
uchar du_1byte_24c02_hs();
void xie_1byte_24c02_hs(uchar dat);
void xie_24c02_hs(uchar add,uchar cmd,uchar dat);
uchar du_24c02_hs(uchar add,uchar cmd);
void init_du_24c02();

void DS1302_xie_1byte(uchar dat);
void DS1302_xie_hs(uchar cmd,uchar dat);
void DS1302_inti();
uchar DS1302_du_hs(uchar cmd);
uchar DS1302_du_1buyte();

void lcm1602_xie_cmd_hs(uchar cmd);
void lcm1602_xie_dat_hs(uchar dat);
void lcm1602_init();

void delay(uint z);
void delaysp(uchar t);
void cang();
void display();
void display_inti();
/******************************************************************/
void delay(uint z)
{  uint x,y;
 for(x=z;x>0;x--)
 for(y=110;y>0;y--);
}

void delaysp(uchar t)
{
 while(t--) ;
}

void cang()
{
   uchar seg;
 seg=DS1302_du_hs(0x81);
   xdw[0]=seg;
 wwe[10]=(seg>>4);
 wwe[11]=(seg&0x0f);

 seg=DS1302_du_hs(0x83);
   xdw[1]=seg;
 wwe[8]=(seg>>4);
 wwe[9]=(seg&0x0f);

 seg=DS1302_du_hs(0x85);
   xdw[2]=seg;
 wwe[6]=(seg>>4);
 wwe[7]=(seg&0x0f);

 seg=DS1302_du_hs(0x87);
   xdw[3]=seg;
 wwe[4]=(seg>>4);
 wwe[5]=(seg&0x0f);

 seg=DS1302_du_hs(0x89);
   xdw[4]=seg;
 wwe[2]=seg>>4;
 wwe[3]=seg&0x0f;

 seg=DS1302_du_hs(0x8b);
   xdw[5]=seg;
 wwe[12]=seg&0x0f;

 seg=DS1302_du_hs(0x8d);
   xdw[6]=seg;
 wwe[0]=seg>>4;
 wwe[1]=seg&0x0f;
}

void display_inti()
{
 uchar i;

 lcm1602_xie_cmd_hs(0x80+0x00);
 for(i=0;i<7;i++)
 {
  lcm1602_xie_dat_hs(tab1[i]);
  delay(2);
 }

 lcm1602_xie_cmd_hs(0x80+0x40);
 for(i=0;i<5;i++)
 {
  lcm1602_xie_dat_hs(tab2[i]);
  delay(2);
 }
}

void display()
{
 uchar i,k;
 lcm1602_xie_cmd_hs(0x80+0x08);
 for(i=0;i<3;i++)
 {
  for(k=0;k<2;k++)
  {
   lcm1602_xie_dat_hs(tab3[wwe[i*2+k]]);
  }
  if(i!=2)
  {
   lcm1602_xie_dat_hs('/');
  }
 }

 lcm1602_xie_cmd_hs(0x80+0x48);
 for(i=0;i<3;i++)
 {
  for(k=0;k<2;k++)
  {
   lcm1602_xie_dat_hs(tab3[wwe[i*2+k+6]]);
  }
  if(i!=2)
  {
   lcm1602_xie_dat_hs(':');
  }
 }

 lcm1602_xie_cmd_hs(0x80+0x45);
 lcm1602_xie_dat_hs(tab3[wwe[12]]);
 delay(2);
}

void lcm1602_xie_cmd_hs(uchar cmd)
{
 uchar i,tmp;
 LCD_RW=0;
 LCD_RS=0;
 LCD_EN=1;
 tmp=cmd;
 HC164_SCK=0;
 for(i=0;i<8;i++)
 {
  HC164_AB=(bit)(tmp&0x01);
  HC164_SCK=1;
  HC164_SCK=0;
  tmp>>=1;
 }
 LCD_EN=0;
}

void lcm1602_xie_dat_hs(uchar dat)
{
 uchar i;
 LCD_RW=0;
 LCD_RS=1;
 LCD_EN=1;
 HC164_SCK=0;
 for(i=0;i<8;i++)
 {
  HC164_AB=(bit)(dat&0x01);
  HC164_SCK=1;
  HC164_SCK=0;
  dat>>=1;
 }
 LCD_EN=0;
}

void lcm1602_init()
{
 LCD_RW=0;
 LCD_RS=0;
 LCD_EN=0;
 lcm1602_xie_cmd_hs(0x38);
 lcm1602_xie_cmd_hs(0x0c);
 lcm1602_xie_cmd_hs(0x06);
}
/*************************ds1302*******************************************************/
void DS1302_xie_1byte(uchar dat)
{
 uchar i;
 for(i=0;i<8;i++)
 {
  DS1302_DS=(bit)(dat&0x01);
  DS1302_SCK=1;
  DS1302_SCK=0;
  dat>>=1;
 }
}

uchar DS1302_du_1buyte()
{
 uchar i,num;
 for(i=0;i<8;i++)
 {
  num>>=1;
  if(DS1302_DS)
  num|=0x80;
  DS1302_SCK=1;
  DS1302_SCK=0;
 }
 return(num);
}

void DS1302_xie_hs(uchar cmd,uchar dat)
{
 DS1302_RST=0;
 DS1302_SCK=0;
 DS1302_RST=1;

 DS1302_xie_1byte(cmd);
 DS1302_xie_1byte(dat);

 DS1302_SCK=1;
 DS1302_RST=0;
}

uchar DS1302_du_hs(uchar cmd)
{
 uchar tmp;
 DS1302_RST=0;
 DS1302_SCK=0;
 DS1302_RST=1;

 DS1302_xie_1byte(cmd);
 tmp=DS1302_du_1buyte();

 DS1302_SCK=1;
 DS1302_RST=0;
 return(tmp);
}

void DS1302_inti()
{
 DS1302_RST=0;
 DS1302_SCK=0;
 DS1302_xie_hs(0x8e,0x00);
 DS1302_xie_hs(0x80,xdw[0]);
 DS1302_xie_hs(0x82,xdw[1]);
 DS1302_xie_hs(0x84,xdw[2]);
 DS1302_xie_hs(0x86,xdw[3]);
 DS1302_xie_hs(0x88,xdw[4]);
 DS1302_xie_hs(0x8a,xdw[5]);
 DS1302_xie_hs(0x8c,xdw[6]);
 DS1302_xie_hs(0x8e,0x80);
}
/*************************24c02*******************************************************/
void start_24c02_hs()
{
 E2R_SCK=1;
 delaysp(1);
 E2R_SDA=1;
 delaysp(1);
 E2R_SDA=0;
 delaysp(1);
}

void stop_24c02_hs()
{
 E2R_SDA=0;
 delaysp(1);
 E2R_SCK=1;
 delaysp(1);
 E2R_SDA=1;
 delaysp(1);
}

void yingda_24c02_hs()
{
 uchar i;
 E2R_SCK=1;
 E2R_SDA=1;
 delaysp(1);
 while((E2R_SDA==1)||(i<220))
 {
   i++;
 }
 E2R_SCK=0;
 delaysp(1);
}

void E2R_inti()
{
 E2R_SCK=1;
 E2R_SDA=1;
}

uchar du_1byte_24c02_hs()
{
 uchar i,num;
 E2R_SCK=0;
 delaysp(1);
 for(i=0;i<8;i++)
 {
  num<<=1;
  E2R_SCK=1;
  delaysp(1);
  if(E2R_SDA)
  num|=0x01;
  E2R_SCK=0;
  delaysp(1);
 }
 return(num);
}

void xie_1byte_24c02_hs(uchar dat)
{
 uchar i;
 E2R_SCK=0;
 delaysp(1);
 for(i=0;i<8;i++)
 {
  E2R_SDA=(bit)(dat&0x80);
  E2R_SCK=1;
  delaysp(1);
  E2R_SCK=0;
  delaysp(1);
  dat<<=1;
 }
 E2R_SDA=1;
 delaysp(1);
}

void xie_24c02_hs(uchar add,uchar cmd,uchar dat)
{
 start_24c02_hs();
 xie_1byte_24c02_hs(add);
 yingda_24c02_hs();
 xie_1byte_24c02_hs(cmd);
 yingda_24c02_hs();
 xie_1byte_24c02_hs(dat);
 yingda_24c02_hs();
 stop_24c02_hs();
}

uchar du_24c02_hs(uchar add,uchar cmd)
{
 uchar tmp;
 start_24c02_hs();
 xie_1byte_24c02_hs(add);
 yingda_24c02_hs();
 xie_1byte_24c02_hs(cmd);
 yingda_24c02_hs();

 start_24c02_hs();
 xie_1byte_24c02_hs(add|0x01);
 yingda_24c02_hs();
 tmp=du_1byte_24c02_hs();
 stop_24c02_hs();
 return(tmp);
}
/*************************************************************************************/

void main()
{
 uchar i,j;
 E2R_inti();
 lcm1602_init();
 display_inti();
   init_du_24c02();
 DS1302_inti();
 while(1)
 {
  cang();
  for(i=0;i<7;i++)
  {
   xie_24c02_hs(0xa0,i,xdw[i]);
   while(j<30)
   {  j++;
     display();
   }
   j=0;
  }
 }
}

void init_du_24c02()
{
   uchar seg;
 seg=du_24c02_hs(0xa0,0);
 xdw[0]=seg;
 seg=du_24c02_hs(0xa0,1);
 xdw[1]=seg;
 seg=du_24c02_hs(0xa0,2);
 xdw[2]=seg;
 seg=du_24c02_hs(0xa0,3);
 xdw[3]=seg;
 seg=du_24c02_hs(0xa0,4);
 xdw[4]=seg;
 seg=du_24c02_hs(0xa0,5);
 xdw[5]=seg;
 seg=du_24c02_hs(0xa0,6);
 xdw[6]=seg;
}
